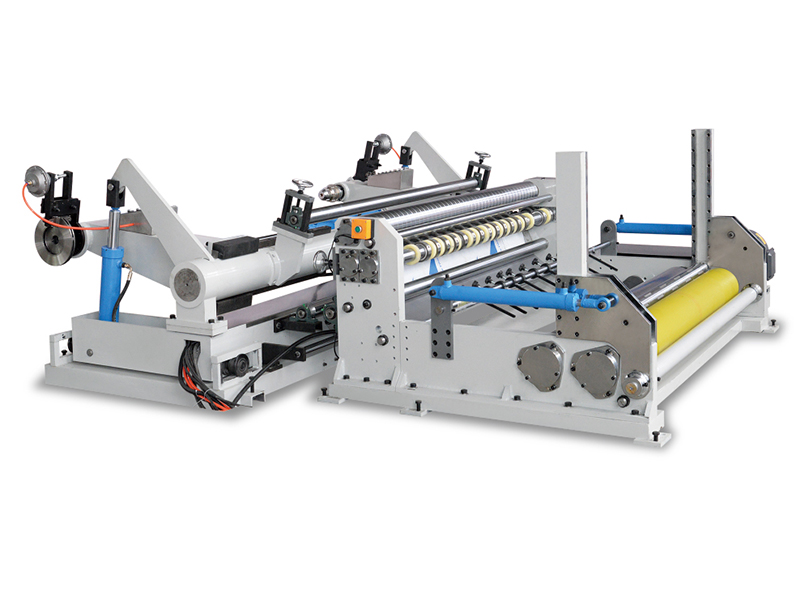

TF-1600 Automatic High-Speed Slitting Machine

Automatic High-Speed Slitting Machine
Automatic High-Speed Slitting Machine Automatic High-Speed Slitting Machine Automatic High-Speed Slitting Machine
Inquiry
Applications

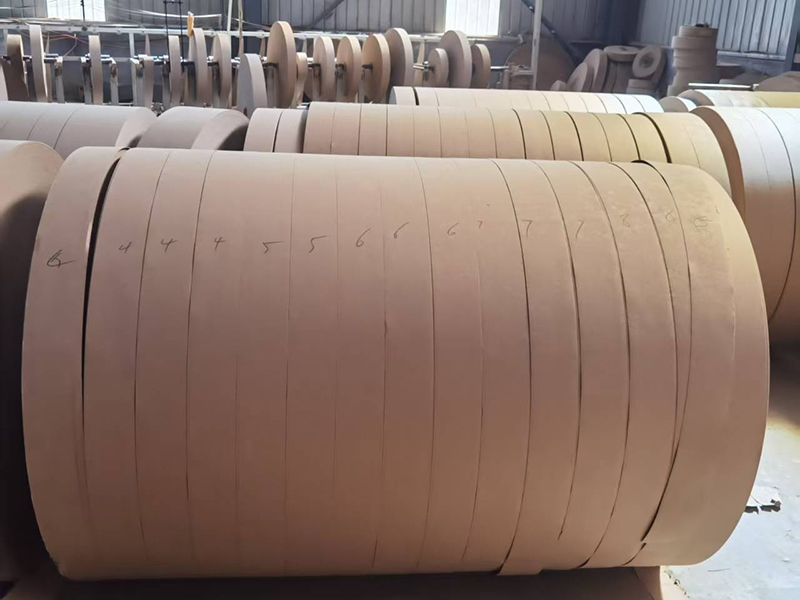

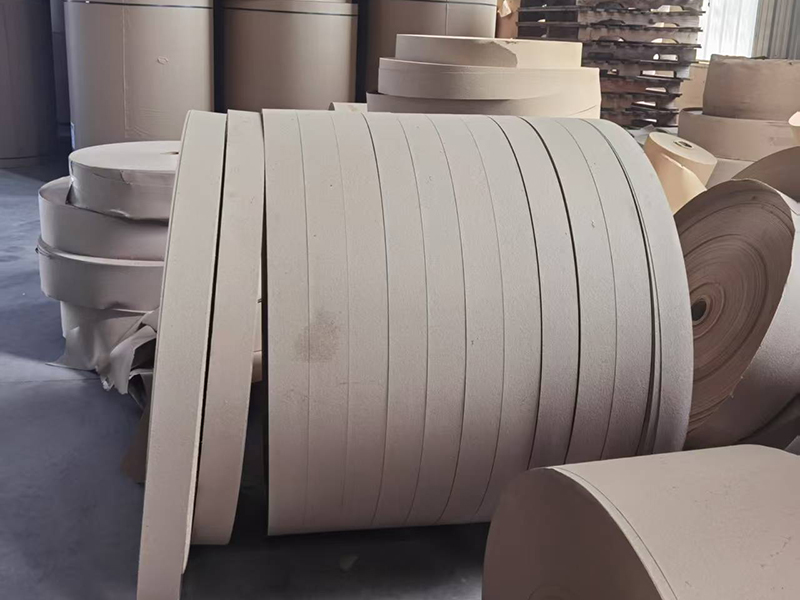

This high-speed slitting machine is used for the slitting and rewinding of various wide-width base papers, such as kraft paper, tube paper, tea board paper, straw board paper, printed paper, and coated paper.

Features
  • The slitting machine utilizes a hydraulic shaftless unwind stand, facilitating easy, quick, and labor-saving loading of paper rolls.
  • Equipped with an automatic edge alignment function, it ensures intelligent and precise edge positioning during operation.
  • The hydraulic unwinding system enhances safety and reliability during the unwinding process.
Technical Parameters
Paper Roll Width 1600mm
Paper Roll Diameter 1300mm
Rewind Diameter 1300mm
Slit Width >35mm
Basis Weight 80-600g
Motor Power 11kW
Number of cutter 18pcs
Cutting speed 1-200m/min
Input Voltage 380V/220V
Number of Operator 1
Unwinding Machine: 3700*1350*1000mm (L*W*H)
Winding Machine 2900*1300*1200mm (L*W*H)
Total Weight 3010kg
