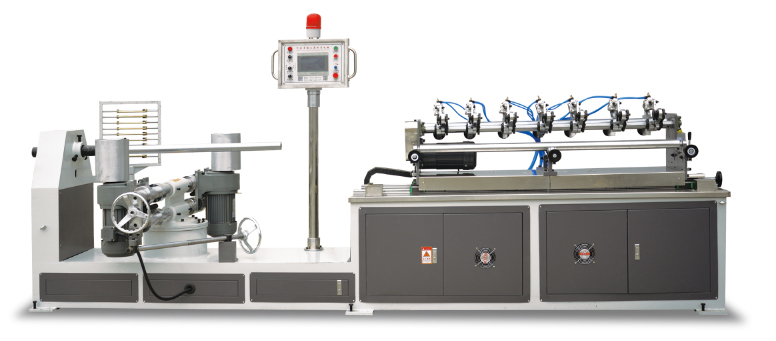

TZ-60 Dual-Head CNC Multi-Blade Paper Tube Machine

TZ-60 Dual-Head CNC Multi-Blade Paper Tube Machine
Inquiry
Applications

This multi-blade paper tube machine is used for the production of small-diameter and short-length paper tubes, such as those used for plastic wrap cores, electronic fireworks tubes, toilet paper cores, and packaging paper cans.

Features
  • Equipped with a servo-driven multi-blade cutting system, it enables the online production of multiple short paper tube segments efficiently.
  • The screw-tightened mold design allows for easy and quick replacement, minimizing downtime and enhancing operational efficiency.
  • It boasts a small footprint, low energy consumption, and high-speed operation, making it ideal for efficient and space-saving production.
Technical Parameters
Number of Paper Layers 2-9 layers
Inner Dia. Of Paper Tube 15-60mm
Thickness of Paper Tube 1-5mm
Minimum Tube Length 90mm
Paper Winding Speed 1-42m/min
Fixed Length Cutting Mode CNC
Winding Head Double head single belt
Cutting Type Automatic tracking for CNC cutting
Input Voltage 380V/220V
Circular Blade 5 pcs
Number of Operators 1-3
Motor Power 2*3.7kW
Motor Speed 1400r/min
Machine Footprint 11000*5000mm (L*W)
Total Weight 2086kg
