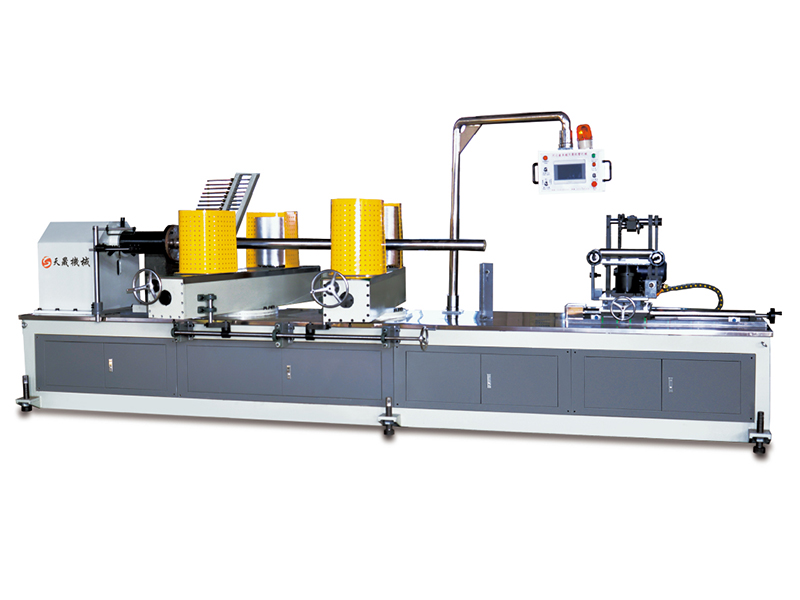

TZ-200 Four-Head CNC Paper Tube Machine

TZ-200 Four-Head CNC Paper Tube Machine
TZ-200 Four-Head CNC Paper Tube Machine TZ-200 Four-Head CNC Paper Tube Machine TZ-200 Four-Head CNC Paper Tube Machine
Inquiry
Applications

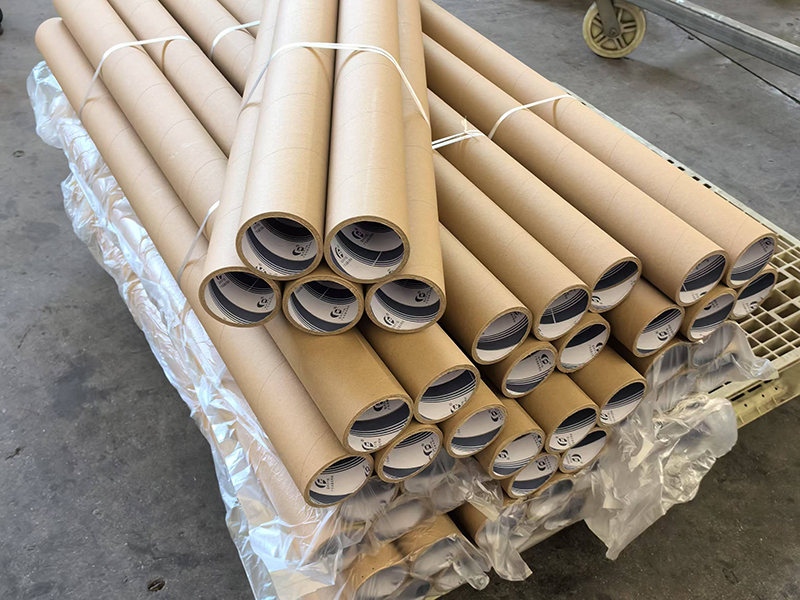

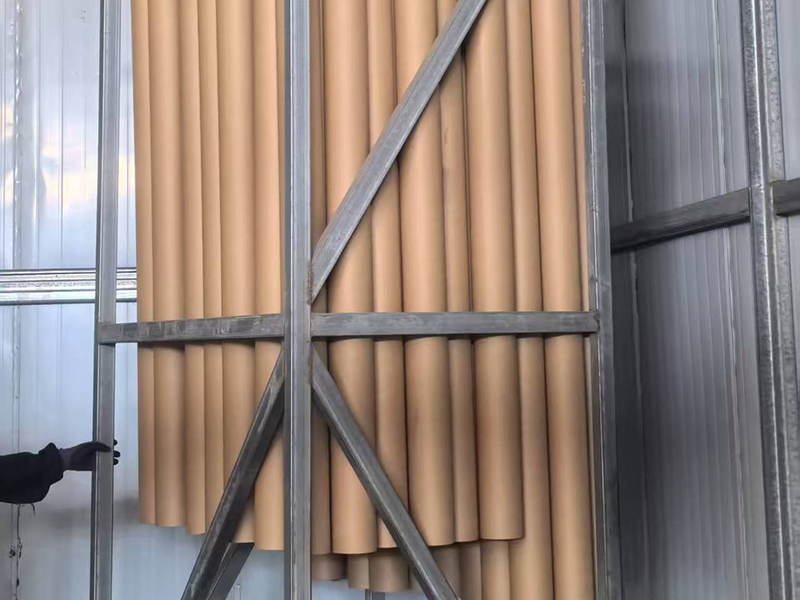

This four-head paper tube machine is used for the production of various industrial paper tubes and cores for plastic film, adhesive tape, plastic wrap, printing, leather, logistics packaging, papermaking, chemical fiber, and toilet paper tubes.

Features
  • The main machine unit features electric angle adjustment for easy and precise operation for optimal cutting performance.
  • Equipped with a servo-driven synchronized rotary blade, it ensures uniform slitting and smooth end surfaces of the paper tubes.
  • The molds are secured using flange and snap-fastening mechanism, facilitating convenient and quick replacements, minimizing downtime.
Technical Parameters
Number of Paper Layers 3-26 layers
Inner Dia. Of Paper Tube 30-200mm
Thickness of Paper Tube 2-15mm
Paper Winding Speed 1-26m/min
Fixed Length Cutting Mode CNC
Winding Head Four head double belt
Cutting Type Automatic tracking for CNC cutting
Input Voltage 380V/220V
Number of Operators 1-3
Motor Power 22kW
Motor Speed 960r∕min
Machine Footprint 20000*9000mm (L*W)
Total Weight 5272kg
