CNC Paper Tube Cutting Machine

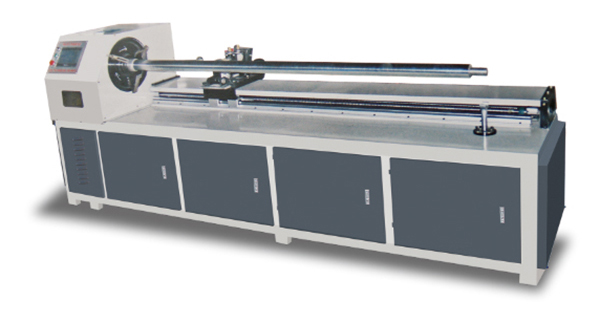

TQ CNC Paper Tube Cutting Machine
CNC Paper Tube Cutting Machine
CNC Paper Tube Cutting Machine
Inquiry
Applications

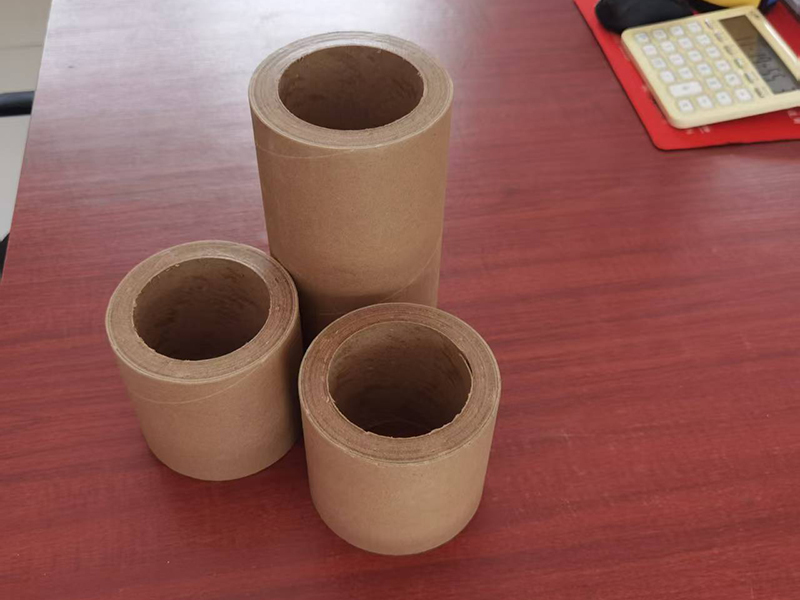

The CNC paper tube cutting machine is designed for precise cutting of paper tubes with inner diameters ranging from 76 mm to 152 mm, thicknesses from 3 mm to 15 mm, and lengths up to 2700 mm (customizable based on specific requirements).

Technical Parameters
Paper Tube Diameter ⌀76-152mm

Paper Tube Thickness		 3-15mm
Paper Tube Length 20-2700mm
Number of Cutters 1 set (standard)
Air Pressure 0.4Mpa
Control Mode CNC
Motor Power 3.0kW+1.5kW
Number of Operators 1
Machine Dimensions 3900*1000*1250mm (L*W*H)
Cutter Size 1.2*100*22mm
Total Weight 1100kg

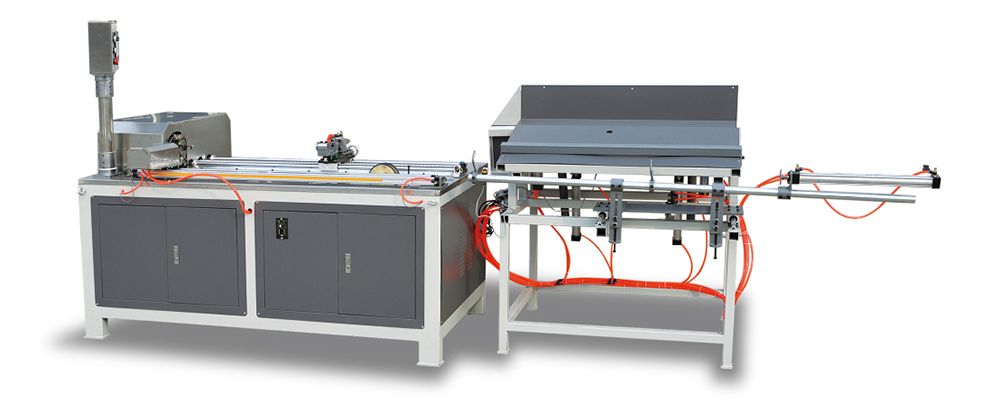

TQ Automatic CNC Small Paper Tube Cutting Machine
CNC Paper Tube Cutting Machine
Inquiry
Features
  • Automatic tube feeding and unloading for enhanced operational efficiency.
  • Servo tracking cutting system for precise and consistent results.
  • Suitable for cutting small paper tubes with an inner diameter of 20–76 mm, thickness of 1–5 mm, and length of 10–1250 mm. Comes with a standard set of blades.
Technical Parameters
Paper Tube Diameter ⌀20-76mm
Paper Tube Thickness 1-5mm
Paper Tube Length 10-1250mm
Number of Cutters 1 set (standard )
Air Pressure 0.4Mpa
control Mode CNC
Motor Power 1.1kW+0.22kW
Number of Operators 1
Machine Dimensions 1900*900*1600mm (L*W*H)
Machine Foot print 3600*1700mm (L*W)
Cutter Size 1.2*90*22/1.2*60*22mm
Total Weight 530kg
