Multi Layer Overbridge Conveyor

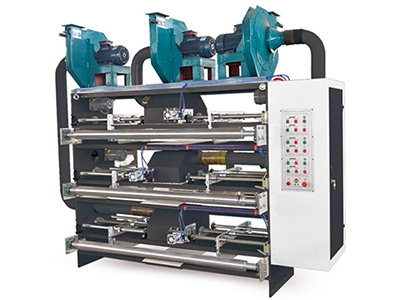

Multi Layer Overbridge Conveyor
Inquiry
Structural Features
  • Single face corrugated sheet from single facer shall be exactly transmitted to the tension brake or suction brake for use in the transmitting system.
  • The corrugator bridge is designed with suction and tension system, and 3kW high-voltage centrifugal variable-frequency blower applied for sheet vacuum adsorbing and tensioning. In addition, electromechanical web guiding system is adopted to ensure sheet stuck firmly in level.
  • Two groups of operation panels are installed for electrical control to be adjustable either on or off the bridge.
  • The collecting part adopts separate variable-frequency driver for sync speed as single facer to send all single-corrugated sheet onto bridge. Some sheets keep stored on the bridge to make up for speed change and then send into three-roller pre-heater for pre-heating and pasting machine and double facer for bonding.
  • The feeding stand is designed with two inclined conveyer belts for feeding at low speed. Low speed feeding realizes stacking of single-corrugated sheets.
Technical Parameters
Layer
single, two, three
Work Width(mm)
1200 - 2800
Optional Web Guiding and Tensioning Control System
1) Electric Web Guiding & Tensioning System

The adsorbed tension is adjustable.
The sheets are electrically aligned.
Operating can be done either over or under overbridge.

2) FTR Automatic Web Guiding & Tensioning System

Product Features
The automatic corrugated cardboard tensioning machine is designed to automatically align sheet in 3-5m. The order can be changed directly without any sort of adjustment. Tension is automatically adjusted per sheet. The equipment is quiet and highly energy efficient.

Web Guiding System
  • Non-contact corrugation detection
  • Highly accurate web guiding
  • Order can be changed directly without adjusting
  • Closed loop control for continuous operation
  • IR sensor based on LEDs with long service life
  • Web guided based on the center and the edge at the same time
Tensioning Control System
  • Provides constant tension when conveying single face corrugated sheets
  • Tension controlled with pressure regulator in a manual manner or automatically adjusted as per sheet tension
  • Features little noise and low energy consumption

Note: The system can be individually sold upon request.
