Fully Automatic Single Face Corrugated Sheet Slitting Cutting & Stacking Machine, NCM-20E

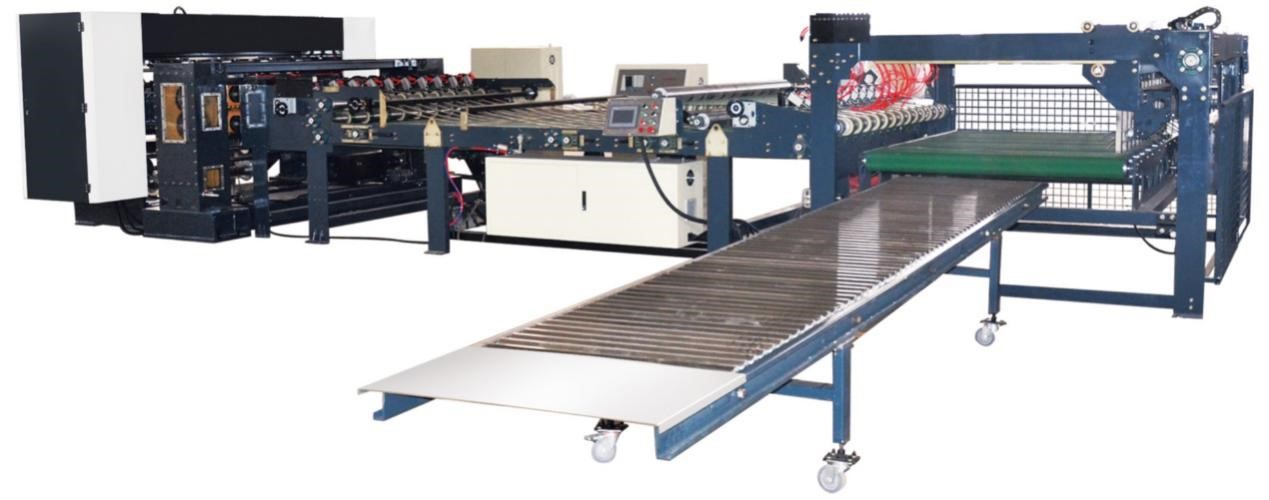

Corrugated Sheet Cutter, Slitter, Stacker, NCM-20E
Inquiry
Features
  • Featuring slitting, cutting and stacking, the corrugating machine is strictly designed as per C.E standard for high safety and reliability. Colorful touch screen enables easy operating and visible display.
  • The corrugated sheet slitting, cutting and stacking machine adopts advanced auto control technology, mechanical-electrical integration technology and internet technology matched with computer for auto running. Strict industrial testing was performed on the corrugator system, providing extremely high stability and reliability.
  • The movement of slitting unit is guided through linear rails, and features AC servo controller for fast, accurate and reliable blade arrangement.
  • The synchronous belt is used for slitting unit with variable frequency drive motor for speed adjusting to be in line with sheet speed for stable slitting under energy saving.
  • The cutting knife is made of high quality alloy steel, and is designed with dual shaft design for stable cutting without burrs. In addition, it’s controlled by the AC servo motor, allowing for high efficiency, precision and long lifespan.
  • The variable frequency drive motor is adopted for stable and reliable transmitting under computer control.
  • The stacking platform is designed with automatic lifting, and the stacking quantity can be set by the computer. What’s more, the stacking unit comes with auto counting and auto outfeed.
Technical Parameters
Work Width(mm) 1800-2500
Design Speed(m/min) 200
Stacking Height(mm) 300
Stacking Length(mm) 1600
