Home » Products » Corrugator Machines » Single Face Corrugated Sheet Cutter, Slitter, Stacker » NC Corrugated Sheet Cutter, Slitter, Stacker, NCM-10B

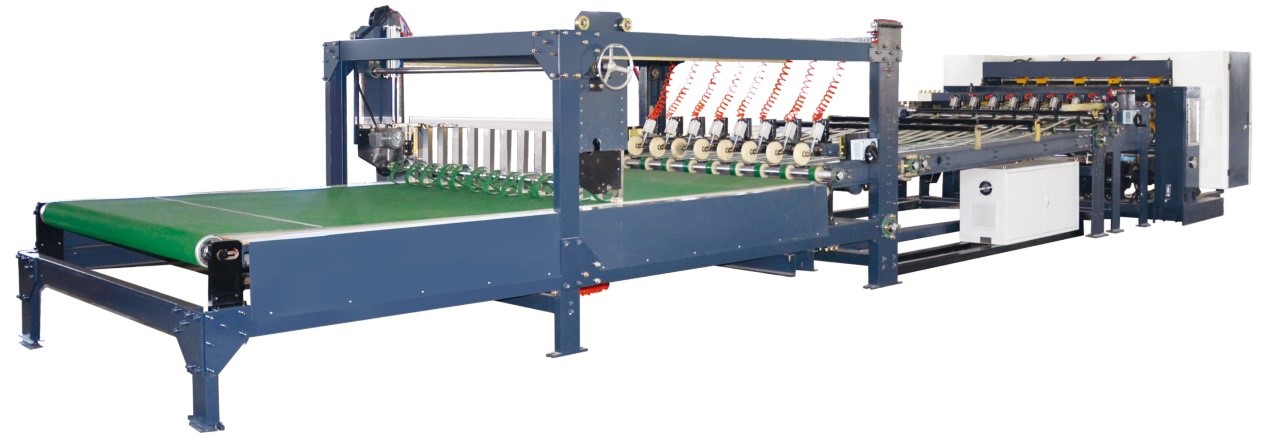

NC Fully Automatic Single Face Corrugated Sheet Slitting Cutting & Stacking Machine, NCM-10B

NC Corrugated Sheet Cutter, Slitter, Stacker, NCM-10B
Inquiry
Features
  • The multi-piece belt and flexible rubber roller structure are applied for sheet feeding.
  • The thin tungsten blade adopted is designed with either manual or automatic grinding, enabling slitting and grinding at the same time for high production efficiency.
  • The AC servo motor is used for high cutting precision.
  • The upper and lower shafts of cutting knife are driven through fine gear meshing and design with auto oil cooling for high precision, reliability and long service life.
  • The machine can achieve auto counting and auto stacking without stop. Auto counting is reached through photoelectric switch and actions of transmitting and stacking are achieved through programmable PLC.
Technical Parameters
Work Width(mm) 1800-2000
Design Speed(m/min) 100
Max. Stacking Height(mm) 300
Max. Stacking Length(mm) 2000
