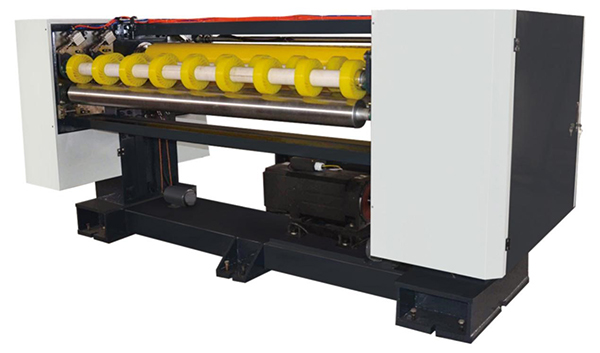

The RC-25 NC helix-knife cut off is designed in the scissor type with design speed at 250m/min and cutting length from 500mm to 9999mm, as well as the cutting accuracy up to ±0.5mm during constant speed and ±1mm during speed decreasing. Its location in the corrugated sheet production line is illustrated in the diagram ②.
Structural Features
- Matched with dual sheet measuring wheels.
- Pre-marking cutting function can be added (optional).
- Order change and waste cutting can be advanced at 250m/min.
- Featured with auto debugging (with touch screen for display).
- Can be connected with Production & Management System.
- Designed without circuit board and with PLC directly connecting with driver for stability and reliability.
Technical Parameters
Work Width(mm) | 1600 – 2800 |
Design Speed(m/min) | 200, 250, 300 |
Cutting Length(mm) | 500-9999 |
Cutting Precision(mm) | ±1mm (at steady speed) |
Functional Features of Control Part
- The system is designed as per C.E standard and strictly tested through industrial computer for good quality, high stability and long service life.
- The driving part and servo motor apply European famous brand, which has good quality, quick reaction and accurate actions.
- The industrial computer applied undergoes temperature, humidity and vibration testing, and boasts uninterruptible power design during operation.
- It is matched with unique power recovery storage system for power saving (above 80% power saving) to overcome unstable working environment.
- The system is featured with auto testing in case of damage from unusual use or wrong operations.
