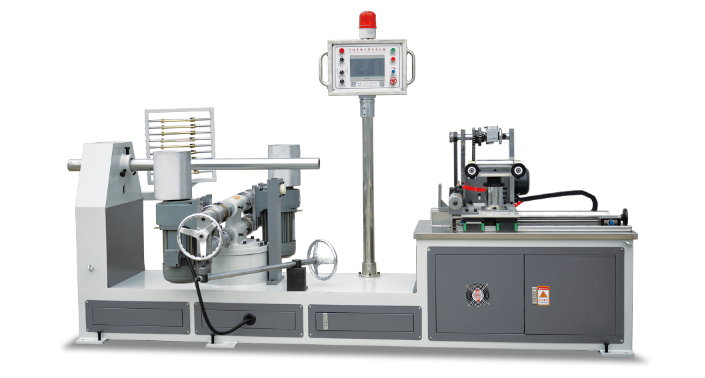

TZ-60 Dual-Head CNC Paper Tube Machine

TZ-60 Dual-Head CNC Paper Tube Machine
Inquiry
Applications

The dual head paper tube machine is designed for the production of small inner diameter paper tubes used in textile spools, fabric rolls, plastic wrap cores, toilet paper cores, along with paper tubes for agricultural film rolls and leather rolls.

Features
  • The paper tube cutting machine is equipped with a servo-driven circular blade cutting system, ensuring uniform gaps between paper tubes and smooth, flat cutting surfaces.
  • The mold is secured with screws, allowing for easy and fast replacement, reducing downtime and improving efficiency.
  • Its small footprint, low energy consumption, and high-speed operation make it ideal for efficient and space-saving production.
Technical Parameters
Number of Paper Layers 2-9 layers
Inner Dia. Of Paper Tube 15-60mm
Thickness of Paper Tube 1-5mm
Paper Winding Speed 1-42m/min
Fixed Length Cutting Mode CNC
Winding Head Double head single belt
Cutting Type Automatic tracking for CNC cutting
Input Voltage 380V/220V
Motor Power 2*3.7kW
Motor Speed 1400r/min
Machine Footprint 11000*5000mm (L*W)
Total Weight 1846kg
