Corrugated Cardboard Machinery Manufacturer

The stationary corrugated cardboard single facer features a simplified design structure at an economic price intended for small and medium-sized carton manufacturers. The machine parts work in conjunction with the automation program for minimal labor intensity.

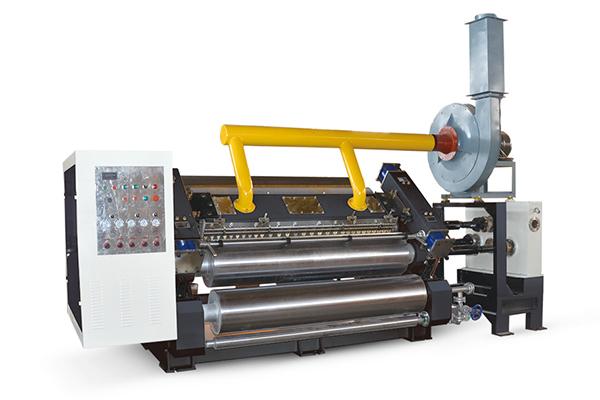

SF-DW/DN15
Dia. of flute roller: Ø320mm
Work width: 1400mm-2200mm. Max. design speed:150m/min
Heat source: steam

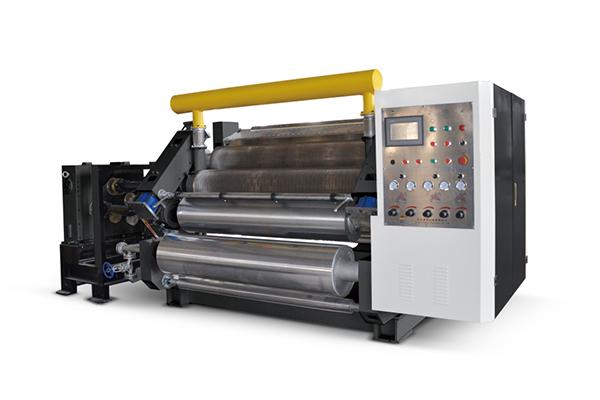

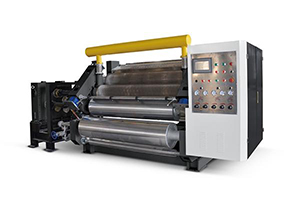

SF-DW/DN10S
Dia. of flute roller: Ø280mm
Work width: 1400mm-2000mm
Max. design speed:100m/min.
Heat source: steam, electricity, oil and natural gas

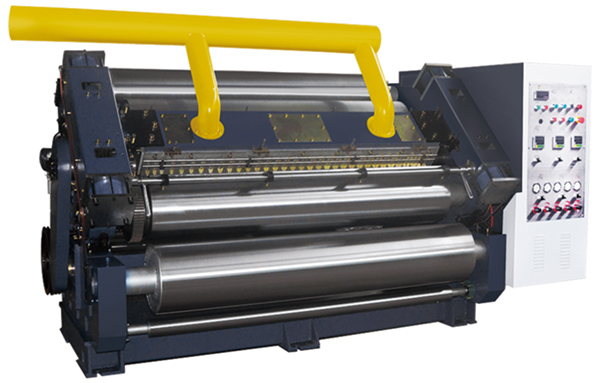

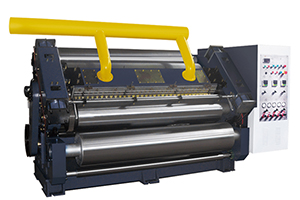

SF-DW/DN8
Dia. of flute roller: Ø270mm
Work width: 1200mm-1800mm
Max. design speed: 80m/min
Heat source: steam, electricity, oil and natural gas
Gimbal: chain/gear drive

• The stationery single facer adopts wind adsorption for paper guide to keep flute stability at high speed.
• The flute paper is adsorbed to the middle flute roller to form a negative pressure zone of 180°and then to finish flute rolling through vacuum box by fan.
• The width of suction slot of lower corrugated roller is not more than 2.0, greatly reducing the stripe mark on single-sided corrugated sheet.
• It adopts gimbal transmission to separate the vibration source, which makes the maintainability higher, the transmission more stable and the operation more reliable.
• The gear box adopts oil bath lubrication and closed gear transmission for vibration reduction.
• It adopts auto-cycle glue supply, pneumatic gluing and releasing for better buffering effect.
