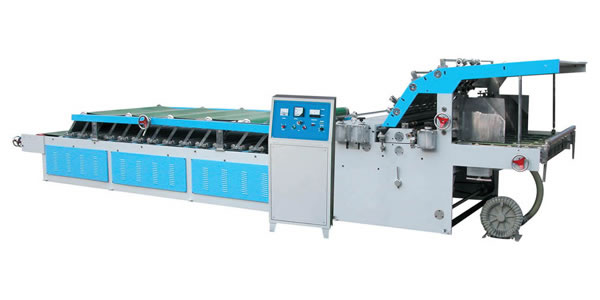

The laminating machine is responsible for lamination of the corrugated cardboard with a single fluted sheet after the whole production is carried out. Thus, it doesn't work with the whole production line. This product possesses a suction belt transmission function which better protects the corrugated cardboard from being cambered and upwarped.
The backing paper is fed by a pushing device with accurate, convenient, steady and fast positioning while having little noise. In this way, the mechanical properties of the laminating machine are guaranteed reliable and stable. The corrugated cardboard can be laminated in an aligning way. Moreover, when the surface paper and the cardboard do not move at the same speed, the faster one will stay at a certain place and wait for the other for neat lamination.
Technical Specifications| Model | ||
| Max. Laminating Size | 1300×1100 | 1400×1100 |
| Min. Laminating Size | 360 ×360 | 360×360 |
| Mechanical Speed | 0-45 | 0-45 |
| Overall Dimension | 10660 ×1980 ×1260 | 10660×2230×1260 |
| Total Power | 4.3 | 4.3 |
| Papercard Used as the Surface Paper | ≥ 200 | ≥ 200 |
| Papercard Used as Backing Paper | ≥ 250 | ≥ 250 |
