This product has been discontinued and removed from our shelves.

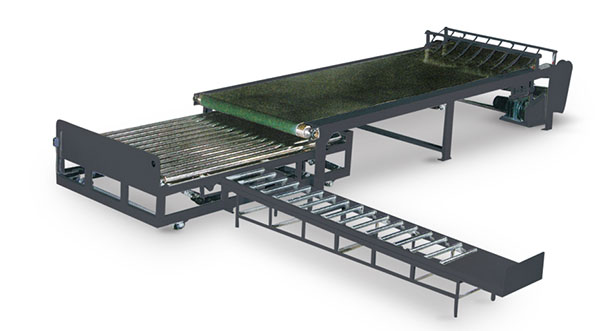

The Square Cardboard Stacking Machine is employed in conveying, stacking and collecting cardboards with the length maximally being 2,300mm. It is a commonly used type and has a great sales volume. In addition, the vertically collected cardboards are delivered by use of the conveying belt with great breadth. As long as the quantity and height of the cardboards meet the required standards, the cardboards will be moved out with the help of the switch.
The position of the Square Cardboard Stacking Machine in the WJ computer high speed corrugated cardboard production line is shown in the diagram (12) and that in the HS high speed corrugated cardboard single sheet production line is presented in drawing ⑥.

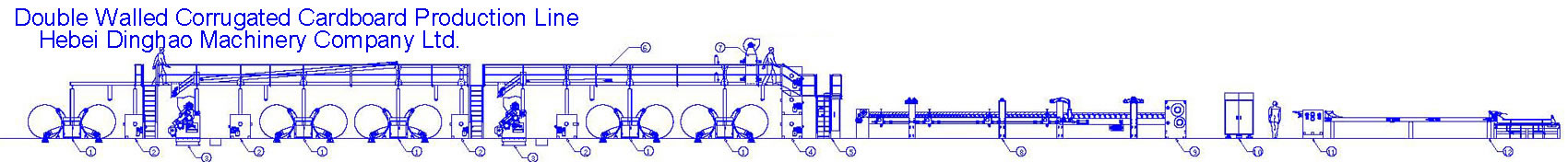

Structure Drawing of WJ Computer High Speed Corrugated Cardboard Production Line
1. Mill Roll Stand
2. Corrugated Cardboard Preheater
3. Single Facer
4. Corrugated Cardboard Glue Coating Machine
5. Escalator
6. Corrugated Cardboard Conveyor
7. Rectification and Tension Machine
8. Drying and Shaping System
9. Main Driving System
10. Corrugated Cardboard Slitter Scorer
11. Corrugated Cardboard Cutting Machine
12. Stacker

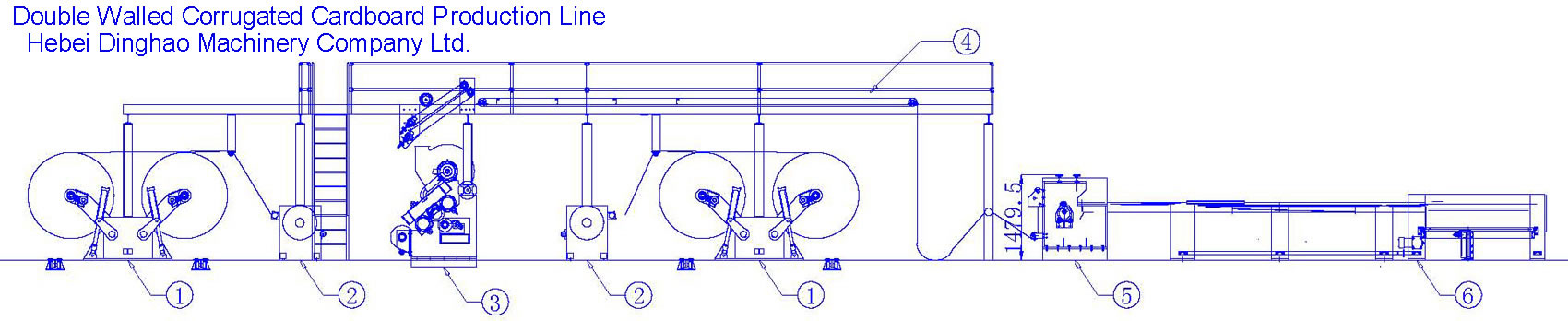

Structure Drawing
1. Paper Mill Roll Stand
2. Corrugated Cardboard Preheater
3. Single Facer
4. Feeding Overbridge Conveyor
5. Stacking Machine
