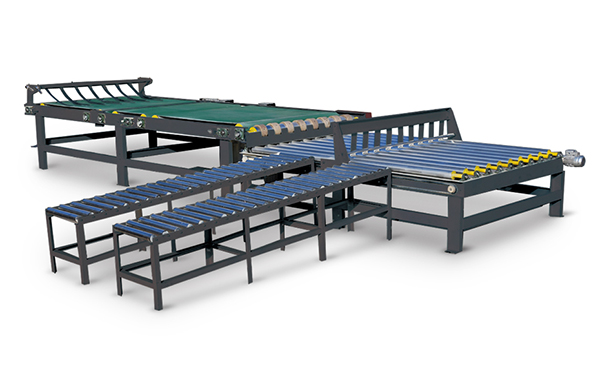

OM-A Fully-auto Square StackerFully Automatic Square Cardboard Stacking Machine

OM-A Fully-auto Square Stacker
Inquiry

The transport section will slow down equipment speeds in order to stack paper board in an electric transverse section. The transport section uses a wide conveyor belt for transmission, auto stacking, counting, zeroing and outputting, and the paper board will be automatically output in a transversal manner when the predetermined quality or height is achieved. The outlet side is matched with two thin rows of a collecting frame for quick and efficient over turning, bundling, and stacking. The location of OM-A fully automatic square stacker in DHCL high speed corrugated sheet production line is shown in the diagram ①.

Technical Parameters
Work Width(mm) 1200-2500
Design Speed(m/min) 100, 150
Max. Stacking Height(mm) 200
Max. Stacking Length(mm) 3000
Features
  • Cardboard conveying unit enjoys a slowdown stacking, allowing cardboards’ conveying in a horizontal way.
  • Cardboard conveying unit adopts a wide conveyor belt for cardboards’ conveying, stacking, counting and discharging.
  • When the cardboards arrive to a certain number or are stacked to a certain height, a horizontal conveying will be activated.
  • Paper carrier, which is made by two rollers, is equipped beside the paper discharging unit for better cardboard turning, packaging and stacking.
