LM-A Auto Gantry StackerCorrugated Cardboard Stacking Machine

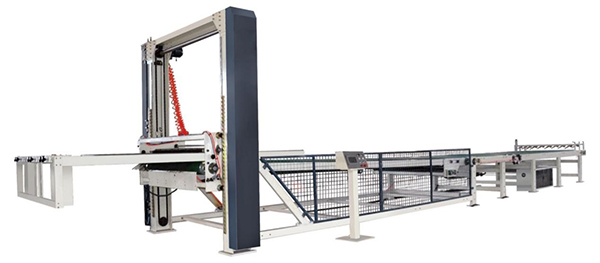

Auto Gantry Stacker, LM-A
Inquiry
Features
  • The corrugator stacker is designed with auto counting and auto stack change for stable and accurate switch.
  • The conveyor transmitting part is designed with pneumatic baffle, and the speed is controlled by the variable-frequency drive, allowing for stable and orderly stacking without sheet damage.
  • The stacking part features gantry design for lifting controlled by the variable frequency drive. When certain quantity is achieved during stacking, the sheet shall be auto shifted outside with variable-frequency drive control.
  • The baffle shall move backwards automatically during sheet output after stack shifting outside.
  • The size is electrically adjusted during shifting outside and the pneumatic brake is matched for walking.
  • Both sides at the output are equipped with paper stand, allowing for easy stacking and bundling.
Technical Parameters
Work Width(mm) 1400-2500
Design Speed(m/min) 150, 200
Max. Stacking Height(mm) 1400
Max. Stacking Length(mm) 3500
