This product has been discontinued and removed from our shelves.
The Fully Automatic Square Cardboard Stacking Machine works to automatically stack, convey and collect cardboards whose maximum length is 2,300mm. The cardboards are horizontally output. The vertically collected cardboards are transmitted with the wide conveyer belt. As soon as the number and height of the cardboard reach required levels, the cardboard will be moved out by use of the control switch.
The location of the Fully Automatic Square Cardboard Stacking Machine in the WJ computer high speed corrugated cardboard production line is shown in the diagram (12) and that in the HS high speed corrugated cardboard single sheet production line is illustrated in the drawing ⑥.

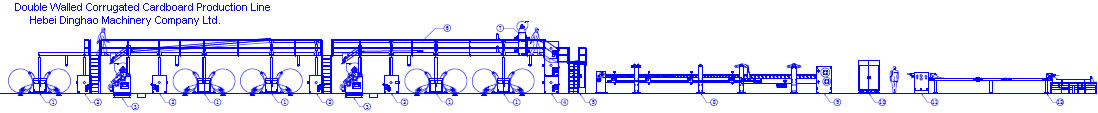

Structure Drawing of WJ Computer High Speed Corrugated Cardboard Production Line
1. Mill Roll Stand
2. Corrugated Cardboard Preheater
3. Single Facer
4. Corrugated Cardboard Glue Coating Machine
5. Escalator
6. Corrugated Cardboard Conveyor
7. Rectification and Tension Machine
8. Drying and Shaping System
9. Main Driving System
10. Corrugated Cardboard Slitter Scorer
11. Corrugated Cardboard Cutting Machine
12. Stacker

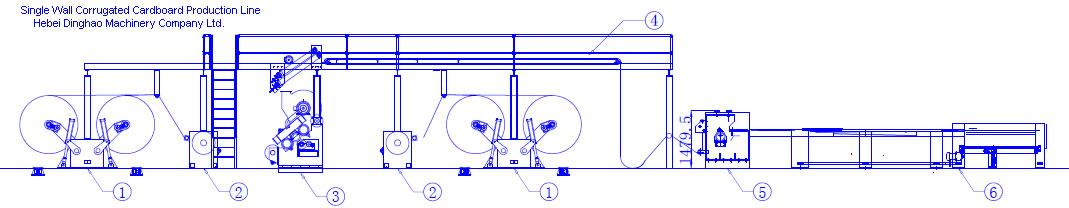

Structure Drawing
1. Paper Mill Roll Stand
2. Corrugated Cardboard Preheater
3. Single Facer
4. Feeding Overbridge Conveyor
5. Stacking Machine
