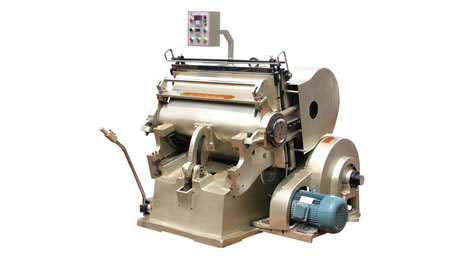

The die cutting creasing machine is only used to process cardboard boxes and cartons having special shapes. It adopts the herringbone gear input construction and helical gear output structure. The gears are made of ball milling castings or 45# steel parts. The electrical components are purchased from CHINT, DELIXI and Zhejiang Taihua.
The die cutting creasing machine has four functions including counting, single or continuous paper cutting, open time delay and counting. Additionally, the time delay range is adjustable. The reliable safety defending system involves gantry insurance, triangle insurance, handle insurance and light-operated automatic insurance.
The die cutting creasing unit comes with the electric sucking type clutch with the characteristics of sensitive braking, great safety factor, high safety performances, etc. The template frame is adjustable for convenient addition and removal of the template. The oil can be provided in manual, centralized or computer automatic way. The product can also be supplied with the feature of frequency control.
Relevant Information
1. Area of Pressing Stand Lithographic Plate: 1330×950mm
2. Inner Size of Plate Frame: 1300×920mm
3. Length of Creasing Cutting Line: <45m
4. Motor Power: (Y132M1-4)7.5kW
5. Overall Weight: 5600kg
6. Speed: 18±2 times/minute
7. Overall Dimension: 2100×2500×2100mm
| Model | Max. Effective Cutting Area | Operation Speed | Length of Creased Cut Sheet | Motor Power | Net Weight | Overall Dimension (L× W× H) |
| 750×520mm | 28 ±2 (strokes/min ) | <15m | 2.2kW | 2000kg | 1260×1350×1280mm | |
| 930×670mm | 23 ±2 (strokes/min ) | <25m | 3.0kW | 3000kg | 1670×1670×1630mm | |
| 1100×800mm | 20 ±2 (strokes/min ) | <32m | 4.0kW | 4500kg | 1900×1780×1700mm | |
| 1200×8300mm | 20 ±2 (strokes/min ) | <35m | 4.0kW | 4800kg | 1920×2140×1920mm | |
| 1300×920mm | 18 ±2 (strokes/min ) | <40m | 5.5kW | 6000kg | 2000×2140×2000mm | |
| 1400×1000mm | 17 ±2 (strokes/min ) | <45m | 5.5kW | 6800kg | 2010×2400×1930mm | |
| 1500×1050mm | 16 ±2 (strokes/min ) | <45m | 5.5kW | 7500kg | 2010×2400×1930mm | |
| 1600×1250mm | 16 ±2 (strokes/min ) | <50m | 11kW | 11000kg | 2170×2560×2230mm | |
| 1800×1300mm | 16 ±2 (strokes/min ) | <62m | 15kW | 13500kg | 2240×2800×2130mm | |
| Note: The above specifications are only for reference. They may be changed as the product is improved. | ||||||
