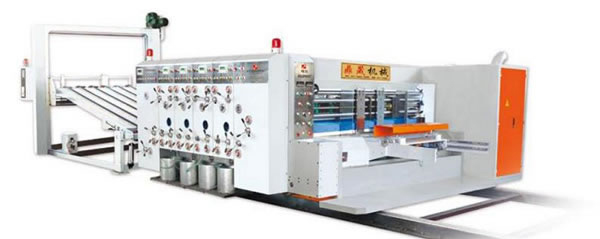

The high speed water based ink printing slotting machine is devised and manufactured in line with high requirements and reliability. Owing to the user-friendly operation design, this product can easily carry out functions of setting, modification, performing, replacing and memorizing in a very short of time. Meanwhile, any change can be displayed with digits accurately.
All the driving rollers use the high quality steel with the surface being plated with hard chrome, and grinded. The transmission gear employs premium quality alloy steel, as well as goes through heat treatment and grinding. The main transmission shaft employs the joint without key to reduce connecting gap, thus guaranteeing registering accuracy. The automatic engine oil balancing device is capable of keeping balanced the oil level of each section.
Technical Specifications| Item | Model | |||||
| Max. Machinery Speed | 150pcs/min | 150pcs/min | 150pcs/min | 150pcs/min | 150pcs/min | |
| Economic Printing Speed | 120pcs/min | 120pcs/min | 120pcs/min | 120pcs/min | 120pcs/min | |
| Max. Cardboard Size | 95 0 × 2000 | 95 0 ×2200 | 95 0 ×2400 | 1300 ×2400 | 1300 ×2600 | |
| Min. Cardboard Size | 260 ×500 | 260 ×500 | 260 ×500 | 350 ×800 | 350 ×800 | |
| Min. Slotting Clearance | Obverse Knife | 140 ×140 ×140 ×140 | 150 ×150 ×150 ×150 | |||
| Reverse Knife | 260 ×60 ×260 ×60 | 280 ×60 ×280 ×60 | ||||
| Max. Slot Depth | 240 | 240 | 240 | 300 | 300 | |
| Skip Paper Feeding | 1200 ×2000 | 1200 ×2200 | 1200 ×2400 | 1500 ×2400 | 1500 ×2600 | |
| Max. Printing Area | 95 0 ×1800 | 950 ×2000 | 950 ×2200 | 1300 ×2200 | 1300 ×2400 | |
| Standard Thickness of Printing Plate | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | |
The whole water based ink printing slotting machine is PLC controlled and has the return-to-zero and memory functions. Additionally, it can also be optionally regulated by both PLC and touch screen. The product can alternatively make use of metal or ceramic anilox roller whose number is dependent on the actual requirements of customers. Because of high efficiency, it is excellent for common or small cartons.
